1 Reason: could not connected

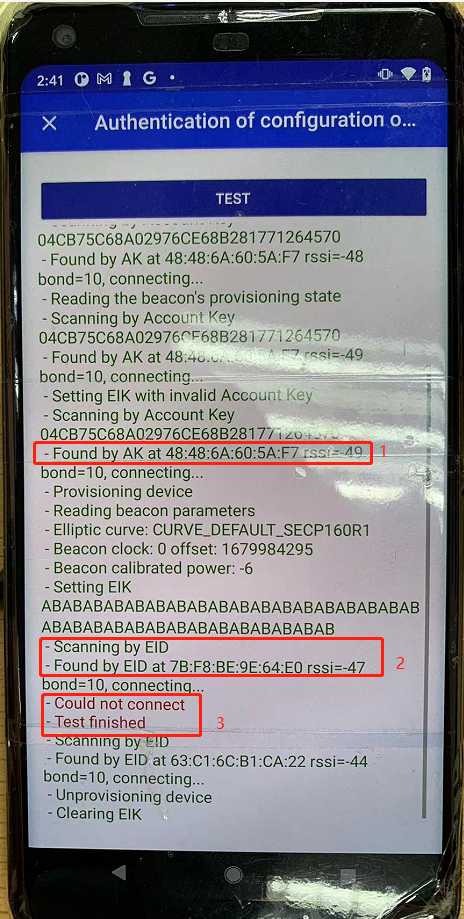

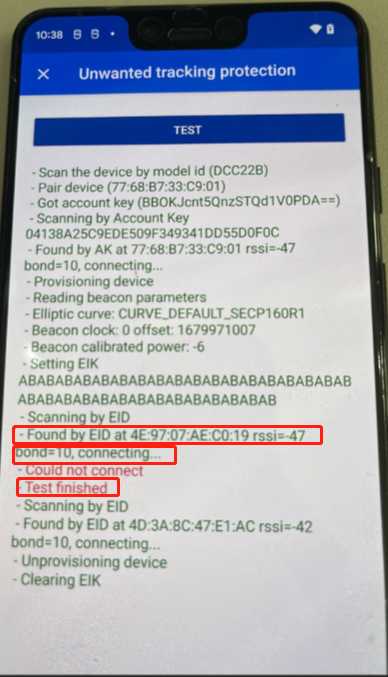

如果测试遇到该问题，麻烦贴一下上面的截图，并且请帮忙指出上图红色框里面对应的信息：
1.Found by EID at xxxxxx， xxxxx对应的地址是什么
2.手机端显示connecting对应的时间点
3.手机端显示Test finished对应的时间点
\
log分析：
截图位置1：
"Found by AK at 48:48:6A:60:5A:F7"
截图位置2：
"Scaning by EID"
"Found by EID at 7B:F8:BE:9E:64:E0"
截图位置3：
手机尝试connecting 7B:F8:BE:9E:64:E0
但是此时耳机端因为 48:48:6A:60:5A:F7 这条link还没有断掉
手机再尝试连7B:F8:BE:9E:64:E0的时候
耳机端会认为link已经存在，直接拒绝这次连线
导致手机端测试显示 "Could not connect"
这个问题不是必现的
\
想请问是不是可以先断开48:48:6A:60:5A:F7这条link，确保手机和耳机的link断开之后, 再尝试执行截图位置2以及之后的操作？
不然的话，
如果在48:48:6A:60:5A:F7这条link 断开之后， 再scan 到7B:F8:BE:9E:64:E0 并且尝试创建BLE link 是没有问题的。
如果在48:48:6A:60:5A:F7这条link 尚未断开之前 ，就scan 到7B:F8:BE:9E:64:E0 并且尝试创建BLE link， 就会遇到上面描述的问题。
\
log:
0006294 03-28#14:18:17.958 199 0034334.679 [HCI] hci_if_confirm: buf 0x0020de33
0006295 03-28#14:18:17.958 200 0034334.980 [HCI] !!!hci_le_conn_cmpl_evt: handle 0x0015, peer_addr 75 F2 05 93 E8 62 connection already exist
0006296 03-28#14:18:17.958 201 0034335.049 [HCI] !**hci_cmd_disconnect: handle 0x0015, cause 0x13
0006297 03-28#14:18:17.958 202 0034335.183 [HCI] hci_if_write: buf 0x00407397, len 7
0006298 03-28#14:18:17.958 203 0034335.299 File[011], Line[0239] [MODULE_LOWERSTACK] [clk:0x0001acd2]-->HCI_CMD:opcode:0406 len:3, 15001300-00407440-00130011-000d0004-00800000
0006299 03-28#14:18:17.958 204 0034335.343 File[011], Line[0789] [MODULE_LOWERSTACK] DISCONNECT OPCODE
0006300 03-28#14:18:17.958 205 0034335.390 File[201], Line[2466] [MODULE_LOWERSTACK] [LL] Disconnect Cmd: conn_handle 21 entry 10 reason 13
COM3_btsnoop_2023-03-28_14-17-41.cfa
bugreport-taimen-RP1A.201005.004.A1-2023-03-28-14-19-27.zip
这个问题需要咨询google：
from google:
Thanks for reporting. I found a race condition which can lead to this result. I'll prepare a fix, but since it does not reproduce on devices that we have, and to save some time, I would like to share an APK with the fix with you to verify it resolves the issue.
Can you provide a Google account on which I can share the APK once it is ready?
google 提供的新的apk: validator_realtek_diag.apk
Alice Zhou(周丽) 麻烦用这个apk压测试试看，是否还能复现到这个问题
\
