# 1 GFPS/Finder如何抓取手机log

<style type="text/css">/**/
div.rbtoc1777701819908 {padding: 0px;}
div.rbtoc1777701819908 ul {margin-left: 0px;}
div.rbtoc1777701819908 li {margin-left: 0px;padding-left: 0px;}

/**/</style>

<div class="toc-macro rbtoc1777701819908">

- [1.请务必详细描述测试步骤及对应时间点，比如：](#id-1GFPS/Finder如何抓取手机log-1.请务必详细描述测试步骤及对应时间点，比如：)
- [2.要同步抓取手机端log，耳机端log 以及测试失败截图](#id-1GFPS/Finder如何抓取手机log-2.要同步抓取手机端log，耳机端log以及测试失败截图)
- [3.手机端log抓取步骤：](#id-1GFPS/Finder如何抓取手机log-3.手机端log抓取步骤：)

</div>

#### **1.请务必详细描述测试步骤及对应时间点，比如：**

**什么时间点开机；**

**什么时间点进Pairing mode；**

**什么时间点点击手机端的GFPS弹窗；**

**什么时间点失败，手机UI失败原因是什么；**

**......**

#### **2.要同步抓取手机端log，耳机端log 以及测试失败截图**

#### **3.手机端log抓取步骤：**

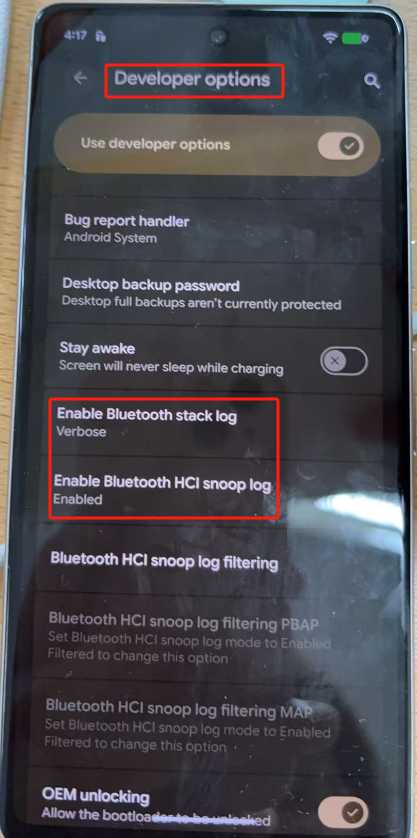

<span style="color: rgb(0,51,102);">**3.1.手机setting界面开启 Bluetooth HCI snoop log**</span>

<span style="color: rgb(0,51,102);">**![](images/1+GFPS_Finder如何抓取手机log_18822135.jpg)**</span>

<span style="color: rgb(0,51,102);">**![](images/1+GFPS_Finder如何抓取手机log_9340c24b.jpg)**</span>

<span style="color: rgb(0,51,102);">**3.2.开始复现问题之前，adb 输入以下cmd:**</span>

<span class="lit"><span style="color: rgb(24,128,56);"><span style="color: rgb(0,51,102);">**`cmd1: `**</span></span></span>`adb`<span class="devsite-syntax-w">` `</span>`logcat`<span class="devsite-syntax-w">` `</span>`-G`<span class="devsite-syntax-w">` `</span>`16M`

<span class="pln"><span style="color: rgb(0,51,102);">**`cmd2:`**` `</span>`adb shell setprop log`</span><span class="pun">`.`</span><span class="pln">`tag`</span><span class="pun">`.`</span><span class="typ">`NearbyMessages`</span><span class="pln">` VERBOSE`\
<span style="color: rgb(0,51,102);">**`cmd3`**</span>`: adb shell setprop log`</span><span class="pun">`.`</span><span class="pln">`tag`</span><span class="pun">`.`</span><span class="typ">`NearbyDiscovery`</span><span class="pln">` VERBOSE`\
<span style="color: rgb(0,51,102);">**`cmd4:`**` `</span>`adb shell setprop log`</span><span class="pun">`.`</span><span class="pln">`tag`</span><span class="pun">`.`</span><span class="typ">`FastPair`</span><span class="pln">` VERBOSE`\
</span>

<span class="pln"><span style="color: rgb(0,51,102);">**`cmd5:`**` `</span></span>`adb shell device_config set_sync_disabled_for_tests persistent `

<span class="pln"><span style="color: rgb(0,51,102);">**`cmd6:`**` `</span></span>`adb shell device_config put bluetooth INIT_logging_debug_enabled_for_all true`

<span class="pln"><span style="color: rgb(0,51,102);">**`cmd7:`**` `</span></span>`adb shell device_config put bluetooth INIT_default_log_level_str LOG_VERBOSE`

cmd8:   adb logcat \> FILENAME.log

**3.3.开始复现问题**

\
<span style="color: rgb(0,51,102);">**3.4.问题复现之后,**</span>

Terminate the logcat by “Ctrl + C”

<span style="color: rgb(0,51,102);"> **adb输入：** </span><span style="color: rgb(0,51,102);">**`adb bugreport 获取log信息`**</span>\

<span style="color: rgb(0,51,102);">**`请提供bugreport-XXX.zip 文件 和 FILENAME.log文件`**</span>

\

\
