# 1.耳机支援LEA,手机也支援LEA,测试fail

<a href="https://partnerissuetracker.corp.google.com/u/0/issues/419110816" class="external-link" rel="nofollow">https://partnerissuetracker.corp.google.com/u/0/issues/419110816</a>

<a href="https://jira.realtek.com/browse/BB2BUG-49617" class="external-link" rel="nofollow">[BB2BUG-49617] [BB2][RTL8763ESH/ROM][GMI][沃莱特][Harman][T530] [finder] 455-[LEA][Finder]EIK rotation Automated test fail - Jira</a>

![](images/1.耳机支援LEA,手机也支援LEA,测试fail_169b8618.jpg)

![](images/1.耳机支援LEA,手机也支援LEA,测试fail_46ca7971.jpg)

<span style="color: rgb(32,33,36);">hi Mark:</span>\
\
<span style="color: rgb(32,33,36);">‘EIK Rotation’ test fail, can you help see the reason, thanks.</span>\
\

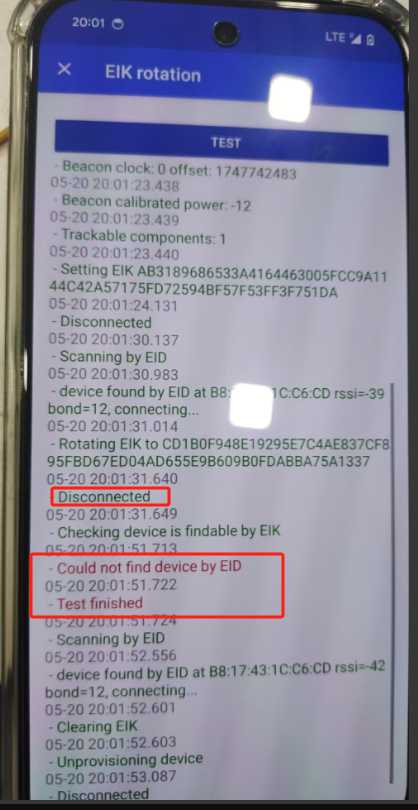

<span style="color: rgb(32,33,36);">test fail screen: Wed May 21 2025 10:06:37 GMT+0800 (中国标准时间).png</span>\
\
<span style="color: rgb(32,33,36);">20:01:31 phone rotating EIK and disconnect this ACL link,</span>\
<span style="color: rgb(32,33,36);">when headsets receive disconnect command, The new EIK will take effect immediately after the BLE connection is terminated.</span>\
<span style="color: rgb(32,33,36);">however headsets seems do not receive this disconnect command,</span>\
\
<span style="color: rgb(32,33,36);">we check logs in phone set:</span>\
<span style="color: rgb(32,33,36);">//20:01:31.628 BluetoothGatt.disconnect</span>\
<span style="color: rgb(32,33,36);">Line 23078: 05-20 20:01:31.628 10290 14358 31585 I GattClientImpl: BluetoothGatt.disconnect() - B8:17:43:1C:C6:CD \[CONTEXT service_id=284 \]</span>\
\
<span style="color: rgb(32,33,36);">however headsets seems do not receive this disconnect command,</span>\
<span style="color: rgb(32,33,36);">we also check air log,  At 20:01:31, there was no disconnection command in the air log.</span>\
\
<span style="color: rgb(32,33,36);">Is it because the cmd to terminate the connection on the mobile phone was not sent out?</span>\
\
<span style="color: rgb(32,33,36);">Add the following information:</span>\
<span style="color: rgb(32,33,36);">The disconnection at 20:01:53 was received by both the air log and the headphone log.</span>\
<span style="color: rgb(32,33,36);">Line 24568: 05-20 20:01:53.076 10290 14358 31594 I GattClientImpl: BluetoothGatt.disconnect() - B8:17:43:1C:C6:CD \[CONTEXT service_id=284 \]</span>\
<span style="color: rgb(32,33,36);">thanks</span>

\

<span style="color: rgb(32,33,36);">add more information:\
The headset supports LE audio.\
When tested with a phone that does not support LE audio,  EIK rotation test succeeds.\
When tested with a phone that supports LE audio, EIK rotation test fails.</span>

\

\

Reassigned to <span class="bv2-email-with-profile-container"><span class="ng-star-inserted"><span class="user-avatar material ng-star-inserted">![](https://lh3.googleusercontent.com/a-/ALV-UjVg5d2VMrok69oU9dMem4yTmwfMW2Ak1nmWZSQfqdkyIgM9y6o=s32-p-k)</span></span><span class="ng-star-inserted"><span class="ng-star-inserted"><a href="mailto:tonyysliu@google.com" class="external-link" rel="nofollow">tonyysliu@google.com</a></span></span></span>.

There seem to be another connection to the same device preventing the ACL from disconnecting. The connection is created a few seconds the Validator tests are run, perhaps during the pairing request which is the part of the test setup (logcat logs missing for that time)

    36659    20:01:05.523604 controller  host    HCI_EVT 34  Rcvd LE Meta (LE Extended Advertising Report)       worldeliteel_1c:c6:cd   00  Common Audio
    36674   20:01:05.548200 host    controller  HCI_CMD 62  Sent LE Extended Create Connection [v1]
    36676   20:01:05.592129 controller  host    HCI_EVT 34  Rcvd LE Meta (LE Enhanced Connection Complete [v1])     worldeliteel_1c:c6:cd
    Connection Handle: 0x0041

LE Audio could be keeping this connection.

    ::le_audio  2025-05-20 20:01:14.743 CONN_STATE     GID -1   CONNECTING_BY_USER (0x05) ->                : xx:xx:xx:xx:c6:cd      ->CONNECTED_BY_USER_GETTING_READY (0x06)
    ::le_audio  2025-05-20 20:01:17.869 CONN_STATE     GID 1    CONNECTED_BY_USER_GETTING_READY (0x06) ->   : xx:xx:xx:xx:c6:cd      ->CONNECTED (0x01)
    ::le_audio  2025-05-20 20:01:53.104 CONN_STATE     GID -1   CONNECTED (0x01) ->                         : xx:xx:xx:xx:c6:cd      ->DISCONNECTING (0x03)
    ::le_audio  2025-05-20 20:01:53.104 CONN_STATE     GID -1   DISCONNECTING (0x03) ->                     : xx:xx:xx:xx:c6:cd      ->REMOVING (0x02)

All GATT connect/disconnect request via API don't trigger actual ACL connects/disconnects on the controller till this one:

    05-20 20:01:31.628 I GattClientImpl: BluetoothGatt.disconnect() - B8:17:43:1C:C6:CD [CONTEXT service_id=284 ]
    42909   20:01:53.102405 host    controller  HCI_CMD 7   Sent Disconnect
    Connection Handle: 0x0041

------------------------------------------------------------------------

<span rel="nofollow" style="text-decoration: none;"><span class="mention">@tonyysliu@google.com</span></span> - do you know whether FP or LEA stack could be creating/holding this connection?

<span style="color: rgb(32,33,36);">‘</span>

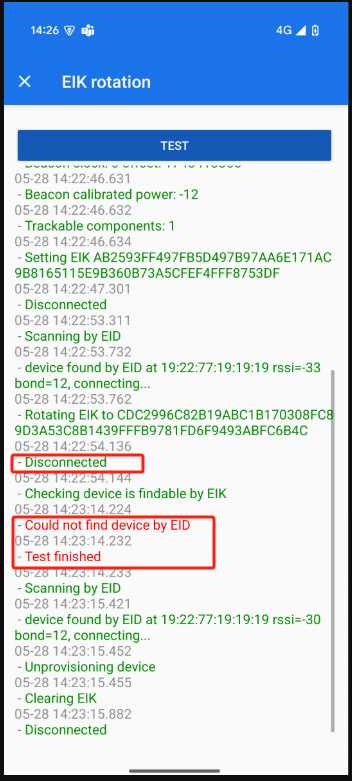

<span style="color: rgb(32,33,36);">![](images/1.耳机支援LEA,手机也支援LEA,测试fail_8b12fd51.jpg)’</span>

\

#### <a href="mailto:gmark@google.com" class="external-link" rel="nofollow">gmark@google.com</a><span class="ng-star-inserted"><span class="bv2-event-user-id ng-star-inserted" style="">\<gmark@<a href="http://google.com" class="external-link" rel="nofollow">google.com</a>\></span></span><span class="ng-star-inserted"><a href="https://partnerissuetracker.corp.google.com/u/0/issues/419110816#comment9" class="external-link" rel="nofollow" style="text-decoration: none;"><span> </span>#9</a></span><span class="bv2-event-info">May 28, 2025 06:11PM</span>

Marked as fixed.

Per logs it indeed seems that the initial connection is created by Fast Pair, then while the link is open, profiles are connected and this link is kept used throught the test till profiles are disconnected due to removing the bond. Forcibly removing the bond is expected to fix this.

    [bugreport-tokay-BP1A.250505.005-2025-05-28-14-25-36.zip]

    05-28 14:22:32.091 I FastPair: FPDC: Starting to pair XX:XX:XX:XX:19:19: key[64], ...

    // Device is being connected to.
    05-28 14:22:32.110 D BluetoothGatt: connect() - device: XX:XX:XX:XX:19:19, auto: false
    10535   14:22:32.155421 controller  host    HCI_EVT 34  Rcvd LE Meta (LE Enhanced Connection Complete [v1])     19:22:77:19:19:19

      14:22:38.931  xx:xx:xx:xx:19:19  bond_state_changed   BOND_STATE_BONDED

    05-28 14:22:40.198 D BluetoothAdapter: HEADSET connected
    05-28 14:22:40.201 D BluetoothAdapter: LE_AUDIO connected
    05-28 14:22:40.209 D CachedBluetoothDevice: onProfileStateChanged: profile LE_AUDIO, device XX:XX:XX:XX:19:19, newProfileState 1
    05-28 14:22:40.217 D CachedBluetoothDevice: onProfileStateChanged: profile VCP, device XX:XX:XX:XX:19:19, newProfileState 1
    05-28 14:22:40.261 D CachedBluetoothDevice: onProfileStateChanged: profile LE_AUDIO, device XX:XX:XX:XX:19:19, newProfileState 1
    05-28 14:22:40.275 D CachedBluetoothDevice: onProfileStateChanged: profile VCP, device XX:XX:XX:XX:19:19, newProfileState 1

    // Does not disconnect due to connected profiles
    05-28 14:22:40.281 D BluetoothGatt: close()

    // All following connect/close calls (skipped) do not affect the underlying connection, it's kept open.

    // Validator closes the connection followed by unbonding, results in closing the underlying connection
    05-28 14:23:15.878 I GattClientImpl: gatt.close() [CONTEXT service_id=284 ]
    05-28 14:23:15.878 D BluetoothGatt: close()

      14:23:15.895  xx:xx:xx:xx:19:19  btif_dm_remove_bond  BOND_STATE_NONE

    13261   14:23:15.909981 controller  host    HCI_EVT 7   Rcvd Disconnect Complete

The potential fix is submitted and expected to be included in the next Validator's version.
